Description

MOTOR AND GENERATOR COOLER Materials of Construction

• Tubes: Copper, Copper-Nickel, Stainless Steel, Titanium
• Fins: Aluminium, Copper
• Tube Plate: Brass, Stainless Steel, Titanium, Carbon Steel*
• Header: Rilsan® Coated Steel, Stainless Steel, Titanium
• Frame work: Galvanized Steel, Stainless Steel, Aluminium
• Special design: We have a wide range of standard materials, but if your application need a cooler with special requirements, such as corrosion protection or special materials, a special design may be the best solution.Please contact us for more information.

TUBE MATERIALS

The tubes are made of copper, copper nickel (90/10), stainless steel or titanium. The secondary tube for double tube cooler is made of copper. The fins on the tubes give an increased heating surface to compensate for the low heat transfer coefficient on the air side.
The tubes are mechanically expanded into the fins to give absolute contact between the two materials. The pitch between the fins is selected to get required cooling duty and air pressure drop conditions.

FIN MATERIALS

The fins are as standard made of aluminium, but can also be made of copper that resists a saline environment very well.

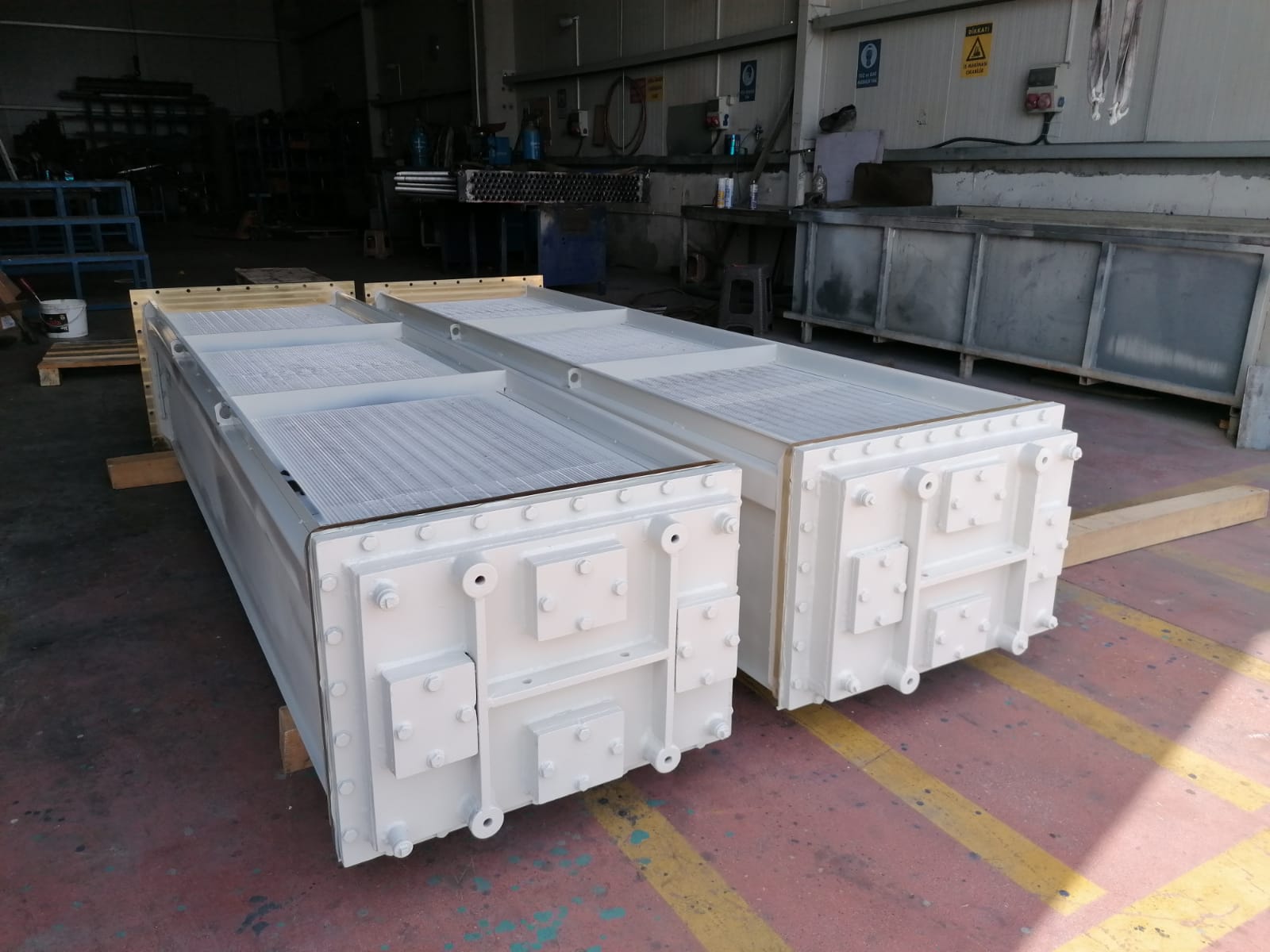

REMOVABLE HEADER

To assist with the mechanical cleaning of the motor and generator cooler, the coil body is fixed between tube plates with a removable header (water box). The header is also equipped with drain and venting plugs. Headers can be made of Rilsan® coated steel, stainless steel or titanium. The cooler may be internally cleaned by simply removing the headers and using a brush inside the tubes.



OIL & GAS

Başaranlar motor and generator cooler design can meet requirements on material selection, tightness control and strength evaluation often specified for oil and gas sector. For this market we also offer the necessary quality verfication and administrative tasks. Please contact us for more information



PACKING

The motor and generator cooler are delivered with different wood packing options depending on the specific transportation mode. The motor and generator cooler, cooler is equipped with lifting lugs in order to place the cooler in right position.



motor and generator cooler Applications

• Hydroelectric generators

• Power generators

• AC turbogenerators

• TEWAC motors

• Ship ventilation systems

​

motor and generator cooler Benefits

• Removable cover plates

• Removable header (water box)

• Robust framework

• Leak detector feature

• Double tube design options

​

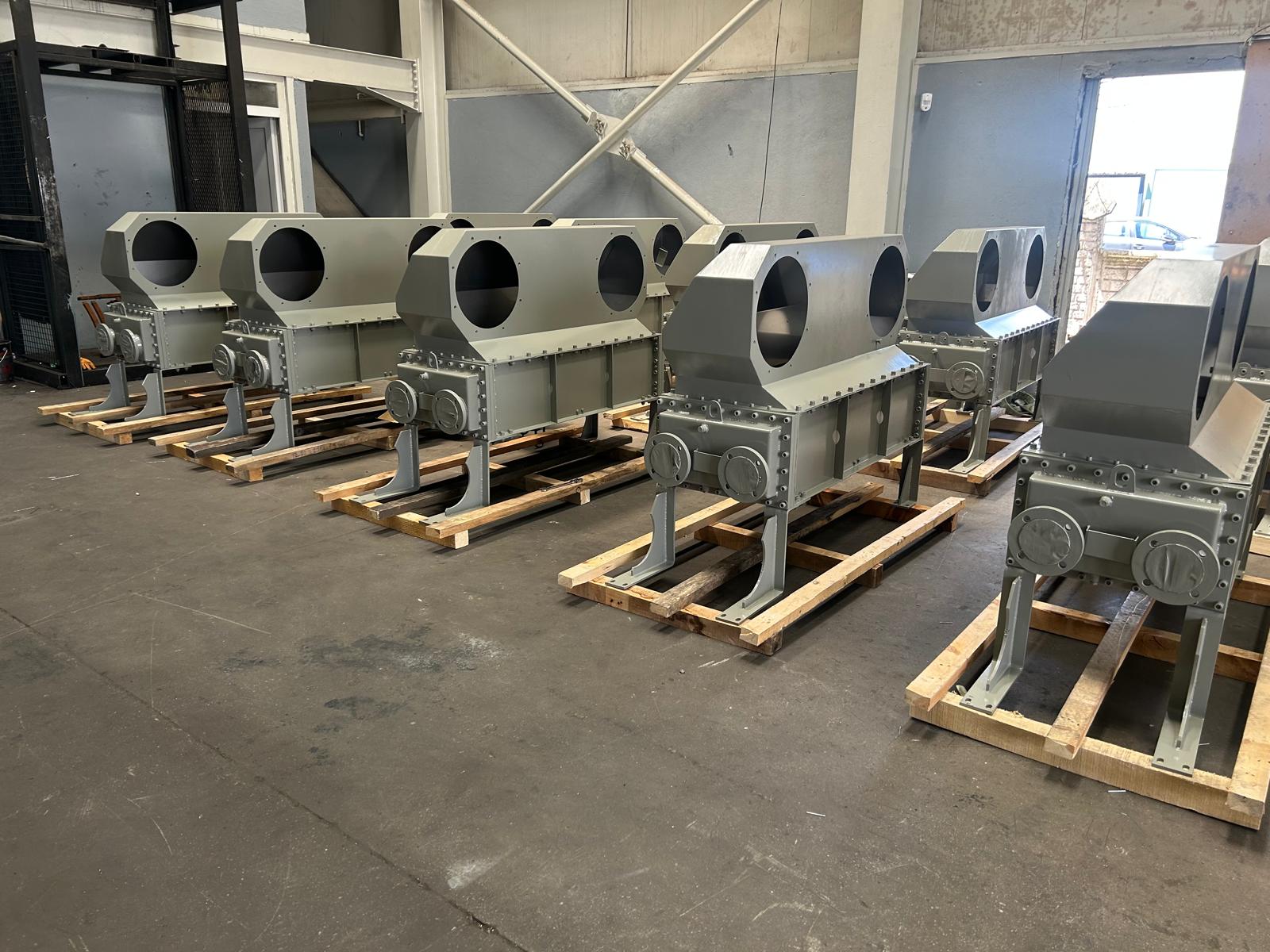

HOOD INSTALLATIONS A COMPLETE UNIT

Başaranlar supplies the complete hood unit, including the motor and generator cooler,  designed specifically to interface with motors or generators. The hood units are customized to fit the client’s needs and can be delivered with or without fan units and with the steel painted according to the corresponding preferred paint system. Hoods made of stainless steel are also available. The hood can be equipped with for example PT100 sensors, cable rails, inspection doors, drip tray with leakage detector and certified lifting lugs according to clients demands etc. Large hoods can be designed as two separate pieces to optimize transportation. Please contact us for more information.
