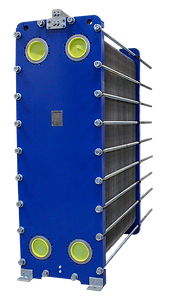

Description

Features:

Every detail is carefully designed to ensure optimal performance, reduced maintenance costs and decreased downtime:

• Compact design

• High flexibility

• Lock gasket system

• Gentle product handling

• Design pressure up to 25 bar

• Operating temperature: up to 180° C

• Leak chamber

• Fixed bolt head

• Lifting lug

• Lining

• Lock washer

Benefits:

• Lower operating costs

• Cost-effective

• Easy assembly

• Increased energy efficiency

• Easy cleaning

• Dead spots, that cause corrosion and fouling are eliminated

​

Design pressure:

• Painted frames: 1.0/1.6/2.5 MPa

• Stainless steel: 1.0/1.6 MPa (145/232 PSI)

​

Plate material:

AISI 304/316 and titanium

Other materials available on request

​

Construction standards:

• EN13445 (PED 2014/68/EU)

• ASME sec VIII, Div. 1

​

Gaskets:

• Click on gasket – a glue less system for sealing

• Materials: NBR, EPDM and Viton
• Other materials available on request
